| قطعه | مواد | قطعه | مواد | ||
| 1 | Drain Plug | PP | 16 | Rear Cover | ZL 102 |
| 2 | O-ring | NBR | 17 | Capacitor Cover | ABS |
| 3 | Valve Body | PP | 18 | Capacitor | |
| 4 | Pump Body | PP | 19 | Terminal Box | ABS |
| 5 | O-ring | NBR | 20 | Stator | |
| 6 | Diffuser | PP | 21 | Bearing | |
| 7 | Impeller | PPO | 22 | Rotor | |
| 8 | Mechanical Seal | Carbon/Ceramic | 23 | O-ring | NBR |
| 9 | O-ring | NBR | 24 | Connector | PVC |
| 10 | Bottom Board | PP | 25 | Nut | ABS |
| 11 | Plastic Support | PP | 26 | O-ring | EPDM |
| 12 | Pump Support | ZL 102 | 27 | Sieve | PP |
| 13 | Fan Cover | PP | 28 | Pump Cover | PC |
| 14 | Fan | PP | 29 | Pump Cover Nut | PA6 |
| 15 | Cable | 30 | Wrench | PP |

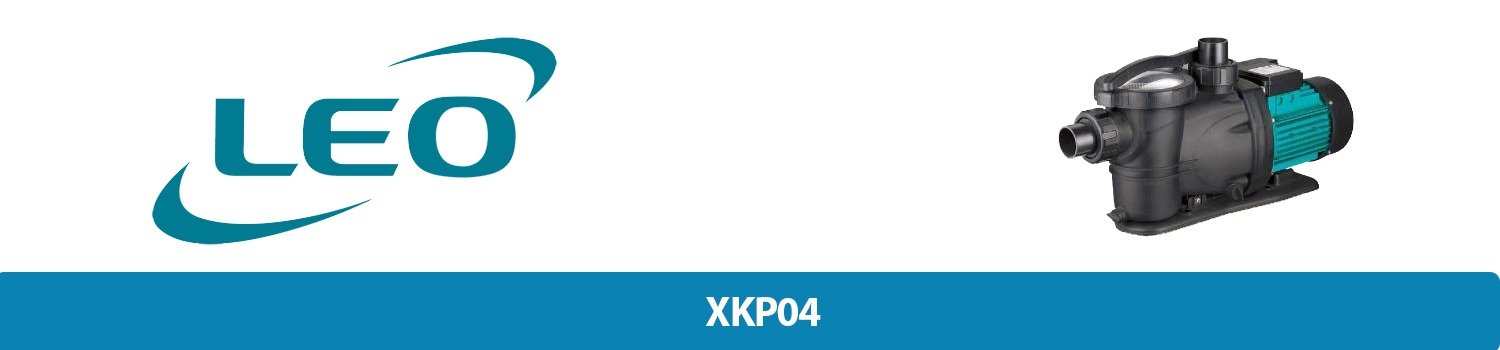

اطلاعات فنی پمپ استخر لئو LEO XKP04
| مدل | قدرت | Q(m³/h) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | |
| W | Q(l/min) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||
| XKP554 | 600 | H (m) | 9.7 | 9 | 8 | 6 | 3.2 | 0.5 | ˗ | ˗ | ˗ | ˗ | |
| XKP804 | 800 | 10.8 | 10.3 | 8.8 | 7 | 4.5 | 1.5 | ˗ | ˗ | ˗ | ˗ | ||
| XKP904 | 900 | 13.2 | 12.3 | 11.1 | 9.2 | 6.5 | 3.4 | 0.2 | ˗ | ˗ | ˗ | ||
| XKP1104 | 1100 | 14.8 | 14.2 | 13.2 | 12 | 10.3 | 8 | 4.8 | ˗ | ˗ | ˗ | ||
| XKP1604 | 1600 | 16.8 | 16.3 | 15.5 | 14.5 | 13.5 | 12 | 9.6 | 7 | 3.5 | ˗ | ||
| XKP2204 | 2200 | 17.8 | 17.3 | 16.5 | 16 | 14.8 | 13.4 | 11.7 | 9.5 | 6.5 | 3.3 |
